Plasma Cutting Drilling Machine
Plasma Cutting Drilling Machine

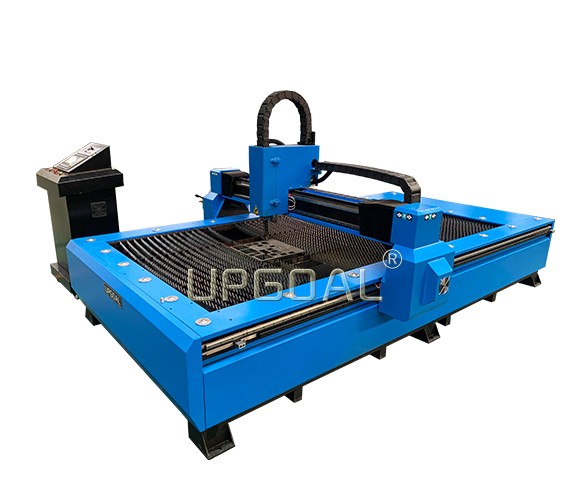

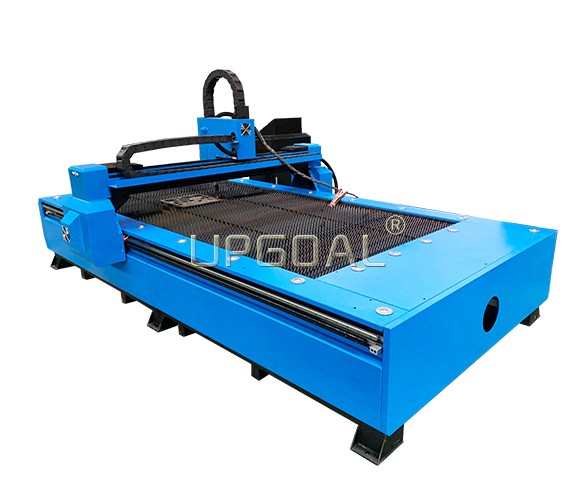

Cheap 120A China CNC Air Plasma Metal Cutting Machine 1500*3000mm

Brief Introduction:

Model: UG-1530P
1500*3000mm working area
China 120A plasma power supply(0-20mm)
STARFIRE control system
HYD THC system
FastCAM nesting software

INQUIRY NOW

Applications

Suitable for nonferrous metal sheet, stainless steel plate, carbon plate,  aluminum plate, galvanized plate, white steel plate, titanium plate, etc materials automatic cutting.

Application: Metal processing, machine manufacturing, auto spare parts, ventilate environment protection, steel structure shipbuilding electrical product’s shell processing, advertisements and signs, decoration, iron art garden, auto making, ship’s electrical parts& plates cutting.

Introduction

CNC plasma cutting drilling machine has solved problem for follow-up processing for small holes after cutting plates, economic, energy conservation and environment protection, high improve the working efficiency, lowing the processing cost, has the ability of combine machining, fully effective the machine performance..


Features

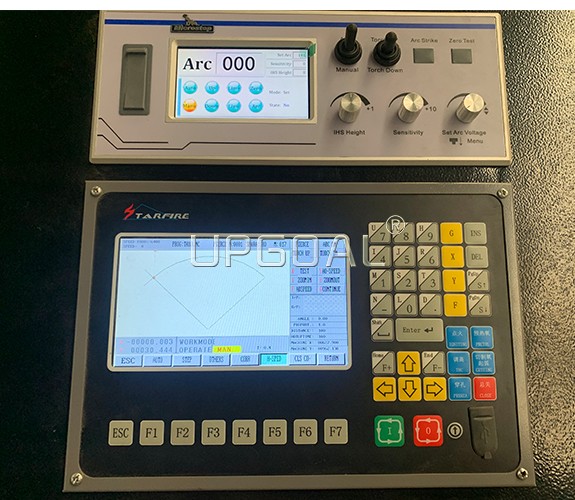

CNC Control system(STARFIRE control system)

1. LCD, English display. Has the notes of each operation button on the bottom of displayer in time, so just needs short training, then the buyer can do independent operation, more convenient and easy to use.

2. Powerful anti-interference ability, moving stable and convenient.

3. With cutting compensation function, setting the required workpiece size in computer, nesting and output, can adjust the slotting size in the control system according to needs, easy and efficient operation.

4. Memory function after power failure and break point, no matter power failure or arc breaking during cutting, all can continue go forwarder or back-off following the cutting track.

THC( Torch Height Controller, Microstep)

1. With high sensitivity THC, auto adjusting the best cutting distance, ensuring the workpiece accurately cutting.


2. The torch has auto torch height controller, during cutting, the torch always keeps the same distance with the plate, extend the nozzle's life time, and get the high quality cutting effect.


3. Good anti jamming capability, stable performance.

Z-axis

1. Z-axis is lead ball screw transmission type, high speed, convenient maintenance,suitable for all kinds thickness of plates.

2. Can auto adjust the cutting distance for uneven plate, ensuring the same distance between the torch with plate, ensuring the cutting quality.

3. Special torch height controller can prevent the torch crash the plates effectively, protect the torch and long time using.

4. With anti-collision device, during the cutting, if torch crash accidentally, the machine will stop immediately, avoiding breaking the machine and thin plates is whiled away due to the cocking.

5. With infrared positioning system for cutting Z-axis

Motor & Drive

1. Adopting China famous CW brand stepper motor and Yako stepper driver, stable performance, high response speed, good anti jamming capability.

2. All the machine's signal wire is high flexible shielded wire, heat resistant, low temperature resistant, bend resistant.

3. Control signal uses 24V voltage, with famous brand switch power supply.

Machine bed part

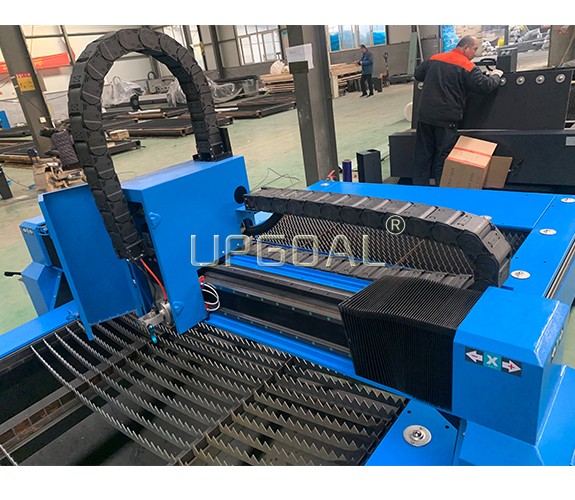

1. The whole machine bed adopts welded steel structure and then precision-machined, whole tempering, fully eliminate welding stress, stable and reliable performance. Heavy square ssteel tube welded gantry, improving stablity & moving precision.

2. Dual driving for Y-axis, XY-axis adopts high precision linear square guide rail, Hiwin, Taiwan, good oriented, high precision. Transmission is high precision helical rack and pinion, customized by the specialized manufacturer, surface carburizing quench, stable moving and high precision.

3. Dust proof system on the gantry, effectively prevent the dust going into guide rail and rack during cutting, extend the machine life time, also make machine more beauty.

4. Special fume dust extractor,and down draft cutting table and slag storage device, create a good working environment.

Nesting Software

1. Austria FastCAM automatic programming and nesting software

2. Auto programming, parts generated and nesting softare professionally drawing and cutting control With the post processor for graphic transformation and nesting.

3. Realizing the edge-shared nested during cutting, saving time and materials.

Plasma Power Supply

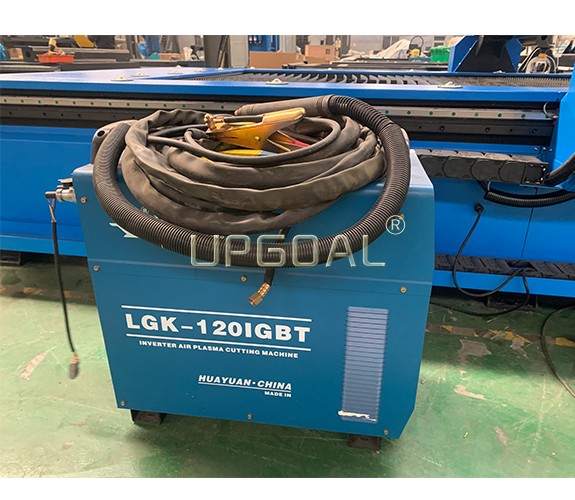

Adopting China Huayuan LGK-120IGBT 120A plasma power supply, cutting ability 0-20mm


Cutting width

1500mm

Cutting length

3000mm

Control system

STARFIRE (USB interface Offline control system)

THC system

Torch height control system( Microstep)

Plasma power supply

China, Huayuan, LGK-100IGBT,120A

Cutting thickness

0-20mm

Traveling speed

20000mm/min

Cutting speed

Adjusted according to material's thickness

Working table

Tooth type cutting blade with drawers

Guide rail

Linear square guide rail ( Hiwin, Taiwan, #20)

Transmission

XY-axis is with helical rack and pinion, lead ball screw for Z-axis

Driving system

Stepper motor and driver

Positioning system

Infrared

Anti-collision system

Has

Power supply

AC 380V±10%, 50/60Hz, three phases

Certificate

CE
